NVPC Particle Counter Solution
The LPS2830 Online NVPC is a compact online laser particle counter designed for continuous cleanroom and facility monitoring. It measures particles at 0.5 µm and 5.0 µm, includes a built-in 1 CFM (28.3 L/min) vacuum pump, and supports RS485, analog and Ethernet communication for ...
Need application support?
Our technical team can help you identify the right solution.
Overview
Product Overview

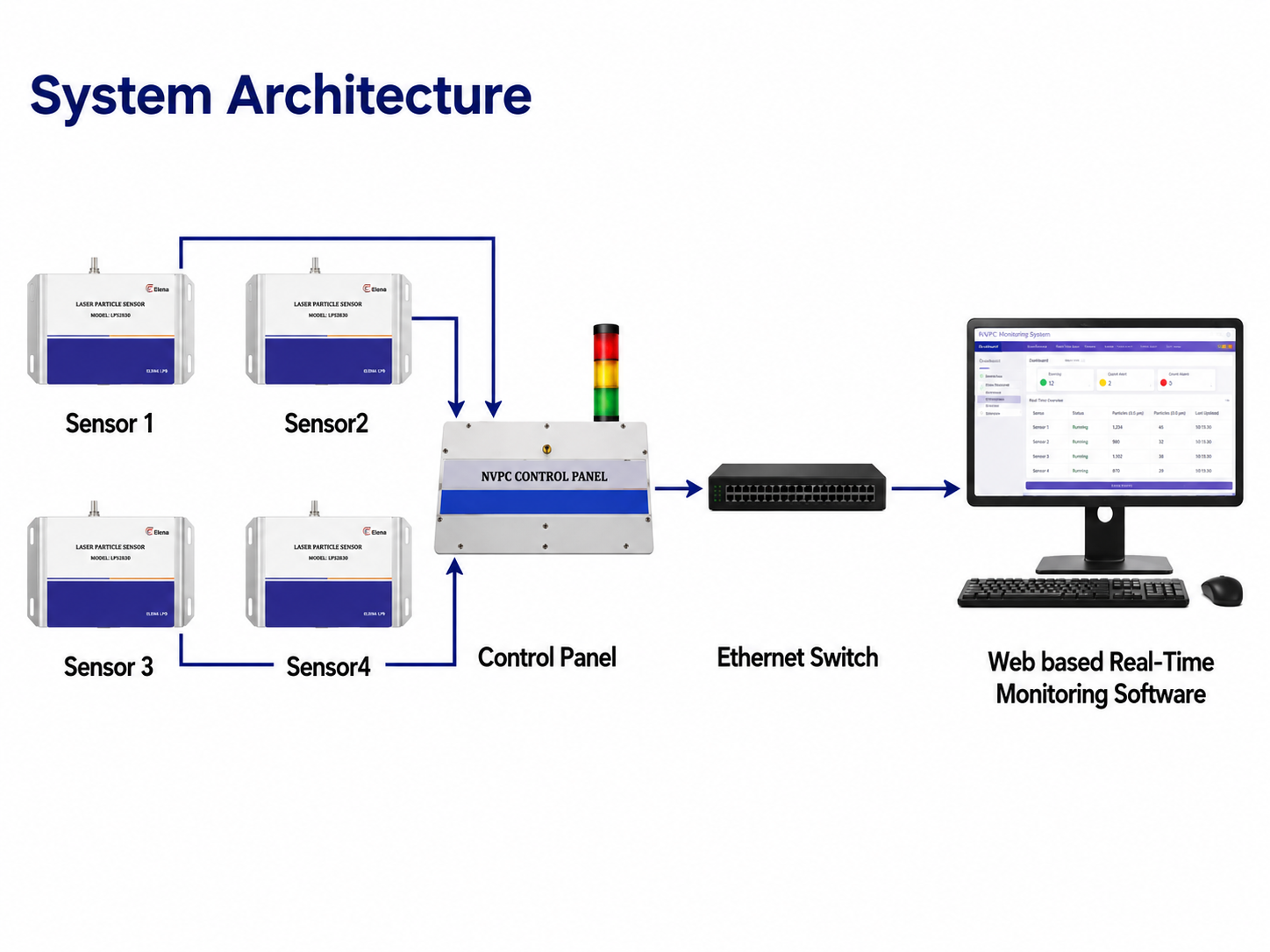

The LPS2830 Online NVPC is a compact online laser particle counter designed for continuous cleanroom and facility monitoring. It measures particles at 0.5 µm and 5.0 µm, includes a built-in 1 CFM (28.3 L/min) vacuum pump, and supports RS485, analog and Ethernet communication for integration with central monitoring systems.
Product Information
Extended Specifications
| Details | Specifications |
|---|---|
| Counting Efficiency Standard | GMP, ISO 14644, FDA, JJP1190-2008 |
| Concentration Limit (0.5 µm) | 500,000 particles/@ 10% coincidence loss |
| Sampling Time | 60 s (configurable) |
| Alarm Setting | 0–100% threshold range |
| Output Setting | ON / OFF Digital Control |
| False Count Rate | <3 counts/ft³ (0.5 µm) / 0 counts (5.0 µm) |
| Laser Classification | Class 1 EN 60825-1:2007 |
| Power Consumption | Max 40 W @ DC 24 V |

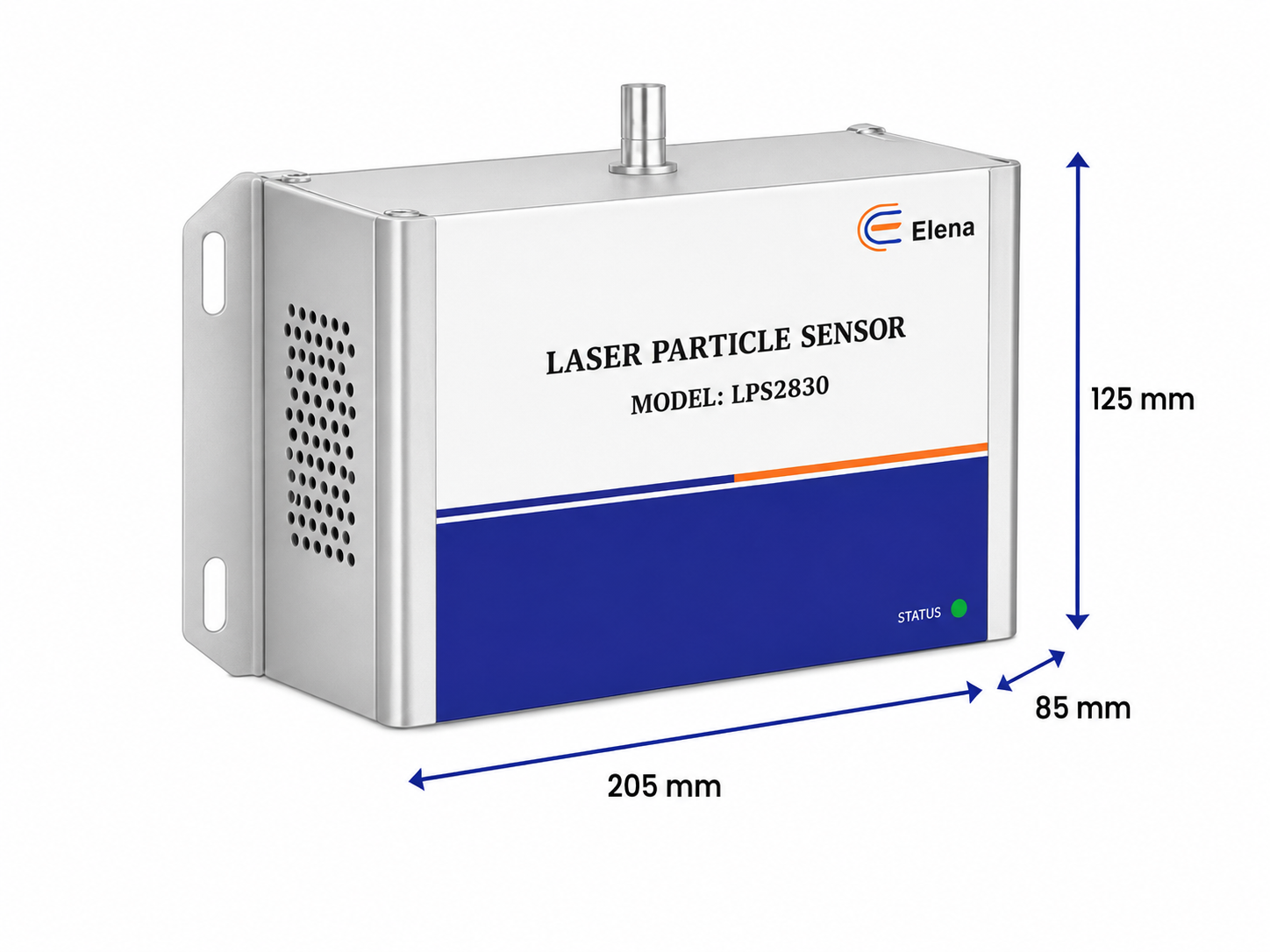

| Dimensions / Weight | 205 × 125 × 85 mm / 1.45 kg |
Product Information
Advanced Features
Web based Configuration Software
Online Service Support in case Emergency
21 CFR Part 11 Campliance
Auto Cap operation of Isokinetic Probe
User-friendly Operation
Individual Sensors start / Stop with Different Multiple Batch Operations, All sensors on with Single batch Operations
Individual Sensors start / Stop withvindividual timings for Grade A and Grade B.
Summary Report /Alarm Report/ Trend Report/ Individual Sensor Batch Report
Simple Plug and play system & very compacted design can be installed in very short period
Product Information
Ordering Codes
| Model Code | Description |
|---|---|
| LPS2830 | DC 24 V with RS485 & Analog Output |
Product Information
High performing, reliable 0.5 µm & 5.0 µm ensitivity remote sensor with built-in pump
0.5 µm and 5.0 µm Dual Channel Sensitivity
ISO 14644-14, GMP, FDA Compliant
Measures Particles, Temperature & Humidity RS485, Analog 4-20 ma, Ethernet Output
Product Information
Faster Troubleshooting & Reduced Downtime
Predictive Maintenance Alerts

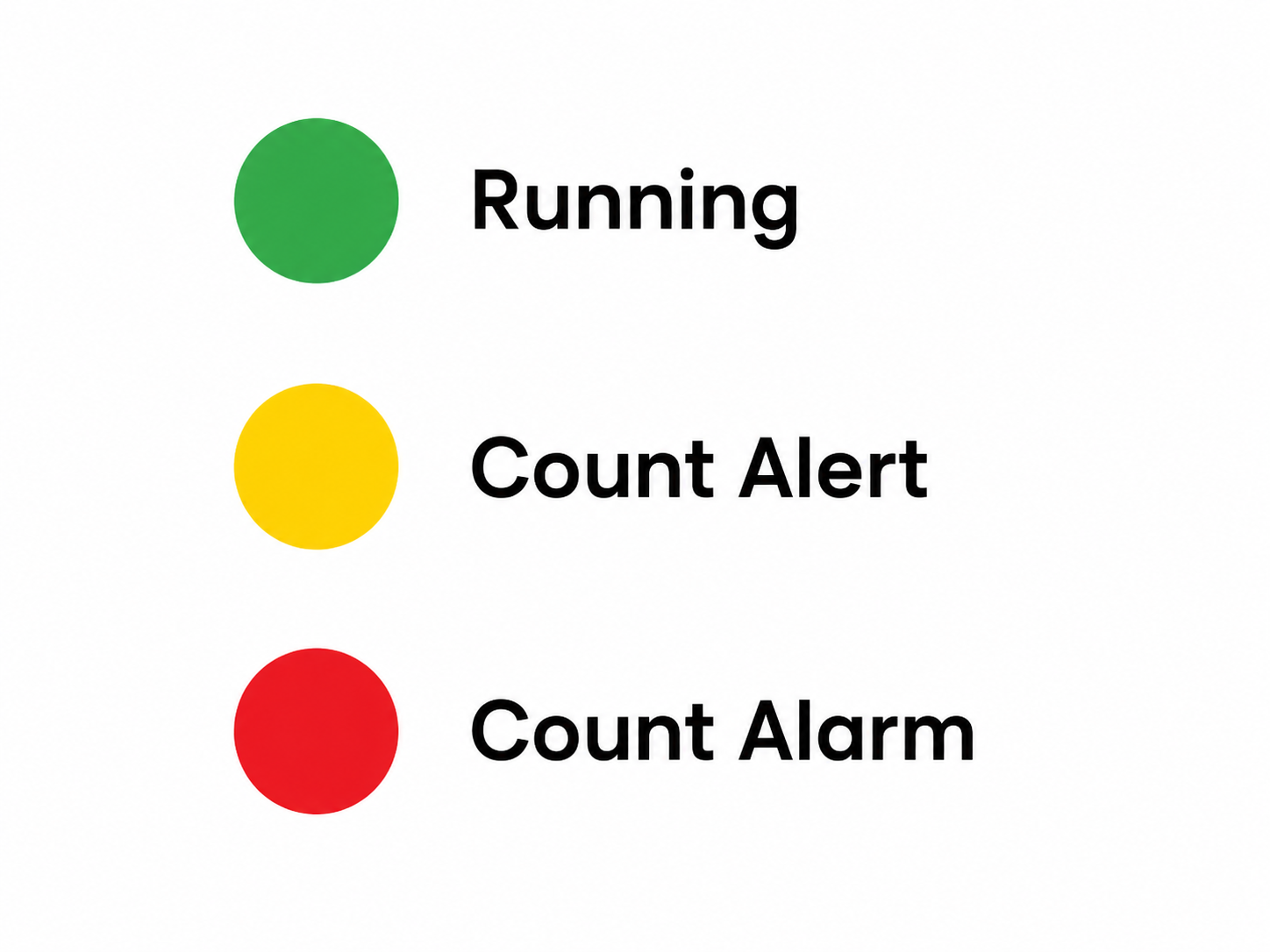

Optional Alarm Tower Lamp
Product Information
Built-In Vacuum Pump
1 CFM (28.3 LPM) Internal Pump
No External Vacuum Required
Product Information
Applications.
Cleanroom Monitoring
Hospital Surgical Rooms
Facility Monitoring
Product Information
Specifications
| Parameter | Details |
|---|---|
| Size Channels | 0.5 µm, 5.0 µm |
| Flow Rate | 28.3 L/min (1 CFM) |
| Interface | RS485, Analog 4-20a, Ethernet |
| Operating Environment | 10–40°C, 20–90% RH |
| Dimensions | 205 × 125 × 85 mm |
| Power | DC 24 V, Max 40 W |
