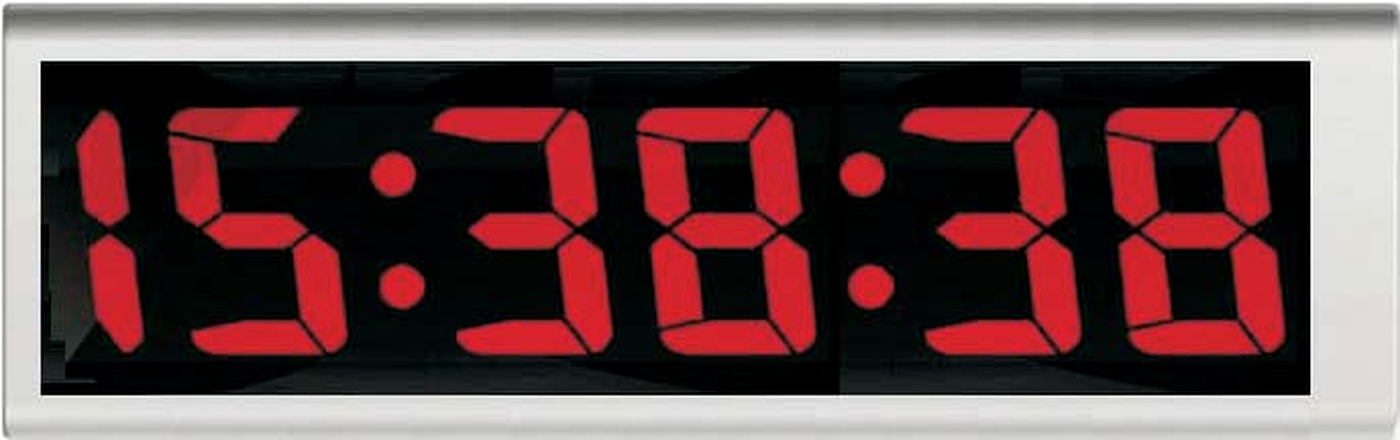

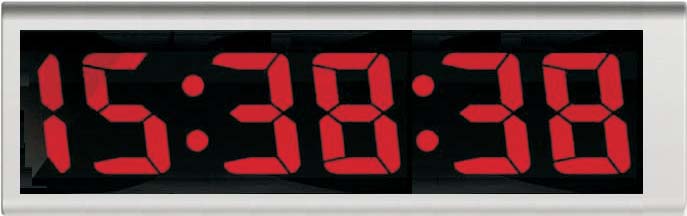

Synchronized Digital Clock - Master & Slave System
Product Code:
UT-1410M / UT-1410S
Download PDF Catalogue
Product Information
| Product Code | UT-1410M / UT-1410S |
|---|---|
| Category | Others |
| Status | Available |
Product Overview

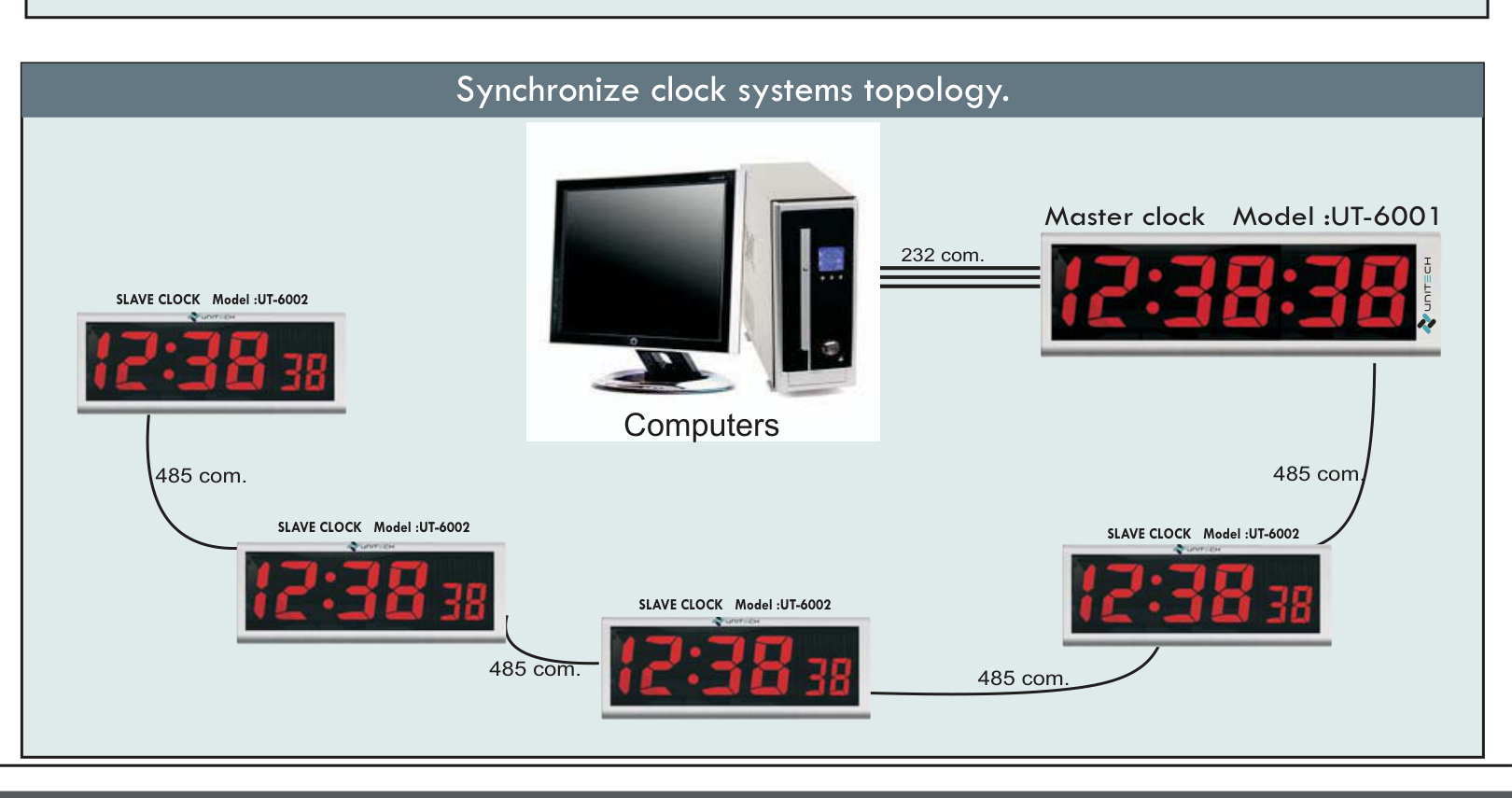

The Synchronized Digital Clock Master & Slave System is designed for applications where accurate and simultaneous time display is required across multiple locations. The Master Clock synchronizes connected Slave Clocks every second, enabling all clocks in the network to display the same time accurately.
The system supports RS-485 communication and can connect up to 120 Slave Clocks in a multidrop network, with communication distances up to approximately 1200 metres. Master and Slave clocks are available with bright 7-segment LED displays and multiple display sizes, mounting options and enclosure configurations. Wireless RF communication is also available as an option.
The system supports RS-485 communication and can connect up to 120 Slave Clocks in a multidrop network, with communication distances up to approximately 1200 metres. Master and Slave clocks are available with bright 7-segment LED displays and multiple display sizes, mounting options and enclosure configurations. Wireless RF communication is also available as an option.
Features
Microprocessor-based synchronized digital clock system
Master Clock synchronizes all Slave Clocks every second
Supports up to 120 Slave Clocks
RS-485 multidrop communication network
Communication distance up to approximately 1200 metres
Optional wireless RF communication
Bright red 7-segment LED display
Available in 0.8-inch, 1-inch, 2-inch and 4-inch display sizes
12/24-hour time format
Hours, minutes and seconds display options
Battery-backed time maintenance
Suitable for cleanroom environments
Flicker-free bright LED display
Wide viewing angle
User-friendly programming modes
EMI/RFI filtering for harsh electrical environments
Optional relay outputs for process control or alarms
Available in MS, SS and flameproof enclosure configurations
Wall mounting and modular mounting options
Specifications
| Specification | Value |
|---|---|
| Master Clock Model | UT-1410M |
| Slave Clock Model | UT-1410S |
| Maximum Slave Clocks | 120 |
| Synchronization Interval | Every second |
| Maximum Communication Distance | Up to 1200 metres |
| Time Format | 12/24 hour |
| Operating Temperature | 0°C to 50°C |
| Display Type | Seven Segment LED Display |
| Display Colour | Red standard; Green and Blue ordering options |
| Display Sizes | 0.8 inch, 1 inch, 2 inch and 4 inch |
| Operating Voltage | 24 V DC or 220 V AC, 50 Hz |
| Power Consumption | 25 W |
| Communication | RS-485; additional communication options available depending on model |
| Controller | Built-in embedded controller with industrial performance |
| Faceplate | Flush mounting SS 304 |
| Enclosure Options | MS Siemens grey powder coated, Stainless Steel or Flameproof |
| Mounting | Brick wall concealed mounting, wall mounting or modular wall mounting |
Master Clock Specifications
| Specification | Value |
|---|---|
| Model | UT-1410M |
| Display | 0.8", 1", 2" or 4" Seven Segment LED Display |
| Display Information | Hours, Minutes and Seconds |
| Communication | RS-485 / RS-232 or Ethernet |
| Time Source | Programmable quartz clock with internal battery backup and Windows update |
| Controller | Built-in embedded controller |
| Operating Voltage | 24 V DC or 220 V AC, 50 Hz |
| Time Synchronization | Every second |
| Time Format | 12/24 hour |
| Power Consumption | 25 W |
| Operating Temperature | 0°C to 50°C |
| Weight | Approx. 0.5 kg for 0.8" display |
| Faceplate | Flush mounting SS 304 |
Slave Clock Specifications
| Specification | Value |
|---|---|
| Model | UT-1410S |
| Display | 0.8", 1", 2" or 4" Seven Segment LED Display |
| Communication | RS-485 |
| Time | Synchronized from Master Clock |
| Controller | Built-in embedded controller |
| Operating Voltage | 24 V DC or 220 V AC, 50 Hz |
| Synchronization | Every second |
| Time Format | 12/24 hour |
| Power Consumption | 25 W |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 110 x 72 x 33.5 mm for 0.8" display |
| Weight | Approx. 0.5 kg for 0.8" display |
| Faceplate | Flush mounting SS 304 |
Applications
Pharmaceutical Industries
Process Industries
Warehouse
Mass Production Factories
Colleges
Master Clock Ordering Information — UT-1410M
| Option | Selection | Code |
|---|---|---|
| Housing | Flame Proof | F |
| Housing | Wall Mount SS | P |
| Housing | Weather Proof | W |
| Display Size | 0.8 Inch | 8 |
| Display Size | 1 Inch | 1 |
| Display Size | 2 Inch | 2 |
| Display Size | 4 Inch | 4 |
| Communication | RS-485 | 4 |
| Communication | RS-232 | 2 |
| Communication | Ethernet | 8 |
| Display Color | Red | R |
| Display Color | Green | G |
| Display Color | Blue | B |
| Auxiliary Power | 230V AC | 1 |
| Auxiliary Power | 110V AC | 2 |
| Auxiliary Power | 24V DC | 4 |
Slave Clock Ordering Information — UT-1410S
| Option | Selection | Code |
|---|---|---|
| Housing | Flame Proof | F |
| Housing | Wall Mount SS | P |
| Housing | Weather Proof | w |
| Display Size | 0.8 Inch | 8 |
| Display Size | 1 Inch | 1 |
| Display Size | 2 Inch | 2 |
| Display Size | 4 Inch | 4 |
| Communication | RS-485 | 4 |
| Communication | Ethernet | 8 |
| Display Color | Red | R |
| Display Color | Green | G |
| Display Color | Blue | B |
| Auxiliary Power | 230V AC | 2 |
| Auxiliary Power | 110V AC | 1 |
| Auxiliary Power | 24V DC | 4 |
