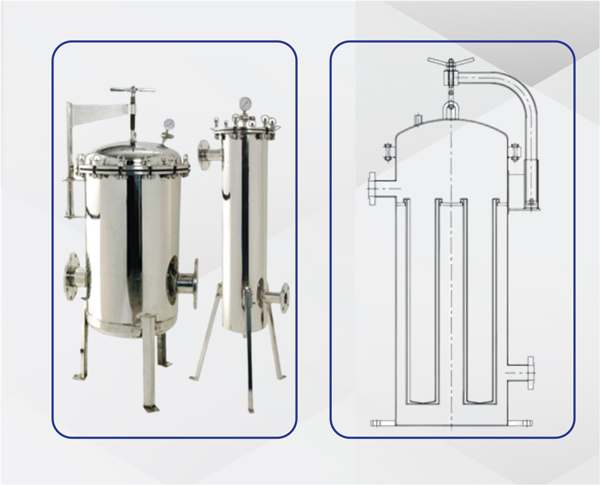

Filter Housings
Our technical team can help you identify the right solution.
Cartridge Filter Housings - Sizes ( Cartridge Filter Housing Suitable For
1 to 500 cartridges in a single housing
Cartridge diameters: 2", 2.5", 4", 6", & 8"
Cartridge lengths: 10", 20", 30", & 40"
Flow Rate
Capacity : Up to 2000 m3/hr & more
Material Of Construction
SS 316L SS 316 SS 304 Mild Steel
Mild Steel
Polypropylene on any metal
Rubber lining on any metal
Teflon lining on any metal
Teflon coating on any metal
Type Of Fitting (Cartridge)
Double Open End (DOE) Type
Code 7 (226 O Ring) Design
Code 3 (226 O Ring) Design
NPT Threaded Connection Type
End Connection
NPT / BSP Threaded
Flanged Table E / Table F
ANSI B 16.5 Flanged
DIN Standard
Tri Clover Adaptors
Gasket / O Ring Material
Neoprene
Nitrile
Silicone
Viton
EPDM
PTFE
Spiral Wound
BUNA
BAG FILTER HOUSING TECHNICAL SPECIFICATIONS:
| Diameter in inch. | Length in inch. | No. of Bags Per Housing |
|---|---|---|
| 4" Dia | 10" Long | 1 No |
| 4" Dia | 20" Long | 1 No |
| 7" Dia | 16" Long | 1 No |
| 7" Dia | 32" Long | 1 No |
| 7" Dia | 32" Long | 2 No |
| 7" Dia | 32" Long | 3 No |
| 7" Dia | 32" Long | 4 No |
| 7" Dia | 32" Long | 5 No |
| 7" Dia | 32" Long | 6 No |
| 7" Dia | 32" Long | 7 No |
| 7" Dia | 32" Long | 9 No |
Flow Rate
Capacity : Up to 2000 m3/hr & more
Material of Construction
SS 316L
SS 316
SS 304
Mild Steel (MS)
Polypropylene
Rubber lining on any metal
Type of Fitting
PP Collar Bag
Snap Band Bag
SS Ring Bag
Flange Collar Bag
End Connection
NPT / BSP Threaded
Flanged Table E / Table F
ANSI B 16.5 Flanged
DIN Standard
Tri Clover Adaptors
